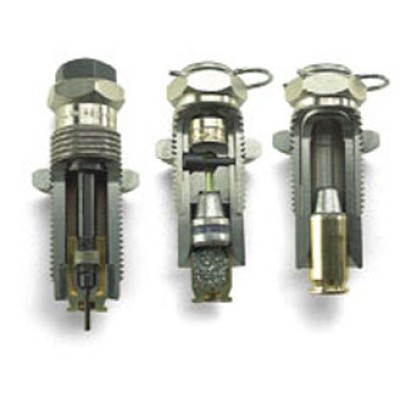

All Dillon Pistol Die sets include our sizer/decapping die, seating die and a separate crimp die (taper crimp for auto cartridges, accu-crimp for revolver cartridges).
Our sizing/depriming dies feature a unique "floating decapping assembly" with a snap spring that throws the spent primer off the pin and eliminates the problem of primer "draw back" that often occurs when decapping military brass. The primary feature of Dillon's size die design the long, tapered carbide ring with a radiused opening, remains unchanged.
The radiused opening, and its importance to progressive reloading, is one of the reasons why our seat and crimp dies are better. We found a way of manufacturing these dies that has enabled us to make the lead-in radius even bigger! The bigger radius makes progressive loading with our equipment even smoother but that's still only a part of the story.
Bullet Seating Die
Our new quick-disassembly seat die allows the user to disassemble and clean the seat die without losing adjustment. In this manner, bullet lube and shavings can be quickly removed from the die, thereby guaranteeing a constant seating depth. We've incorporated a "flip-flop" seating stem and a clip that enables you to remove the die insert and change the seating stem from round nose to semi-wadcutter without unscrewing a seating stem out of the die body. We've always included both types of seating stems, but the new double-ended design makes it a simple matter to remove a pin, reverse the seating stem, make any minor seating depth adjustments that may be necessary and go on loading in a fraction of the time it used to take.
We've made it easy for you to remove the die insert for cleaning without having to change the critical crimp adjustment. Once your crimp die is set for the proper amount of crimp, you'll never have to change it. This is especially good news for all of you who load lead bullets! Before, you had to unscrew the die from the toolhead and disassemble the die in order to remove any bullet lube or lead residue. Then, you had to start from square one to re-adjust the crimp. Those days are over. All you have to do now is pop a clip and the die insert drops into your hand for cleaning.
|Country of Manufacture||United States|
Here To Help
Free UK Delivery - Orders Over £50
Free Returns - 60 Days
Same Day Dispatch - Order Before 4pm
What Reloading Kit Do I Need?
We get asked very often by people that are new to reloading, what equipment they require to start with.
The answer is very complex and needs to be answered in full either via a telephone conversation or via email, however the basic equipment is as follows:
Reloading Press (Single Stage, Turret, Progressive)
Die Set ( Neck Sizing Die Set, Full Length Sizing Die Set)
Case Trimmer (On Press Trimming, Lathe Type Trimmer, Power Trimming Kits)
Cleaning Equipment (Dry Vibratory Tumbler, Ultra Sonic Cleaner, Wet Rotary Tumbler)
Powder Measure (On Press, Stand Alone, Digital Powder System)
Scales (Manual Digital, Manual Balance Beam, Digital Powder System)
Priming Tool and Shell Holder (On Press, Off Press)
Reloading Manual / Hand Book
Powder Dribbler / Trickler
Lubrication (Aerosol, Apply By Hand)
Vernier Calipers (Manual, Digital)
Case Loading Trays / Blocks
Quinetic Hammer / Bullet Puller (Hand Held, On Press)
Brass, Bullet Heads, Primers, Powder
